Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: CHENXIN
  • Model Number: YES-300
  • Power: Hydraulic
  • Usage: Compression Testing Machine
  • Accuracy: First grade

Packaging & Delivery

Packaging Details firm wooden case with polyfoam inside
Delivery Time 7 days after payment

Specifications

1. hydraulic
2. can real time display curve on computer
3. the result can be stored onto computer and print out on A4

1. Function

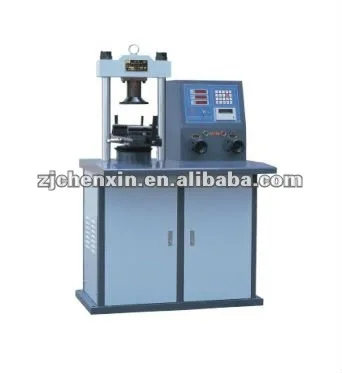

"YES-300 digital display compression testing machine, UTM, pressure testing machine" is used for testing the compression strength detection bending-proof, thunderbolt strength experiments for concrete, stone and other building materials.

2. Application
"YES-300 digital display compression testing machine, UTM, pressure testing machine" is mainly used in the project construction such as the railroad, road, bridge, port, high-rise etc. it is applicable for the tensile strength resistant test to the concrete, construction parts, building materials etc. it can also be used for the strength test to the metal other non-metallic material, construction parts.

3. Security protection
Test force safeguard; The piston max movable span safeguard; over-temperature protect, and so on.

4. Ergometer
The tester adopts JL-02 force value indicator as the ergometer. The ergometer consist of sensor, amplify board, A/D transmission board and min printer.

5. Data saving
This apparatus has the capacity of data memory. It store test data in a memory chip. After switching off, the data will be stored and it can adjust to take the original storage data after switching on , then searching or printing. If you use software it also can be linked with PC, store data in PC or deliver to the superintendence center, realize data net share and superintendence center centralized management. The maximum storage inside this apparatus is 151 units, (NO. 000~NO.150), each test unit includes 3 or 6 test data and intensity mean. When you store the test data of NO. 150, the first test data (000# data) will be extruded.
Main technical parameters:

Max. test force
300KN
Force range
10~300KN
Testing space
φ160×(175~375)
Piston max. stroke
80mm
Readout accuracy
≤±1%
Motor power
1.1KW(0.75KW)
Machine size
9401×400×1460mm
Net weight
420kg
